Our bestseller for all applications

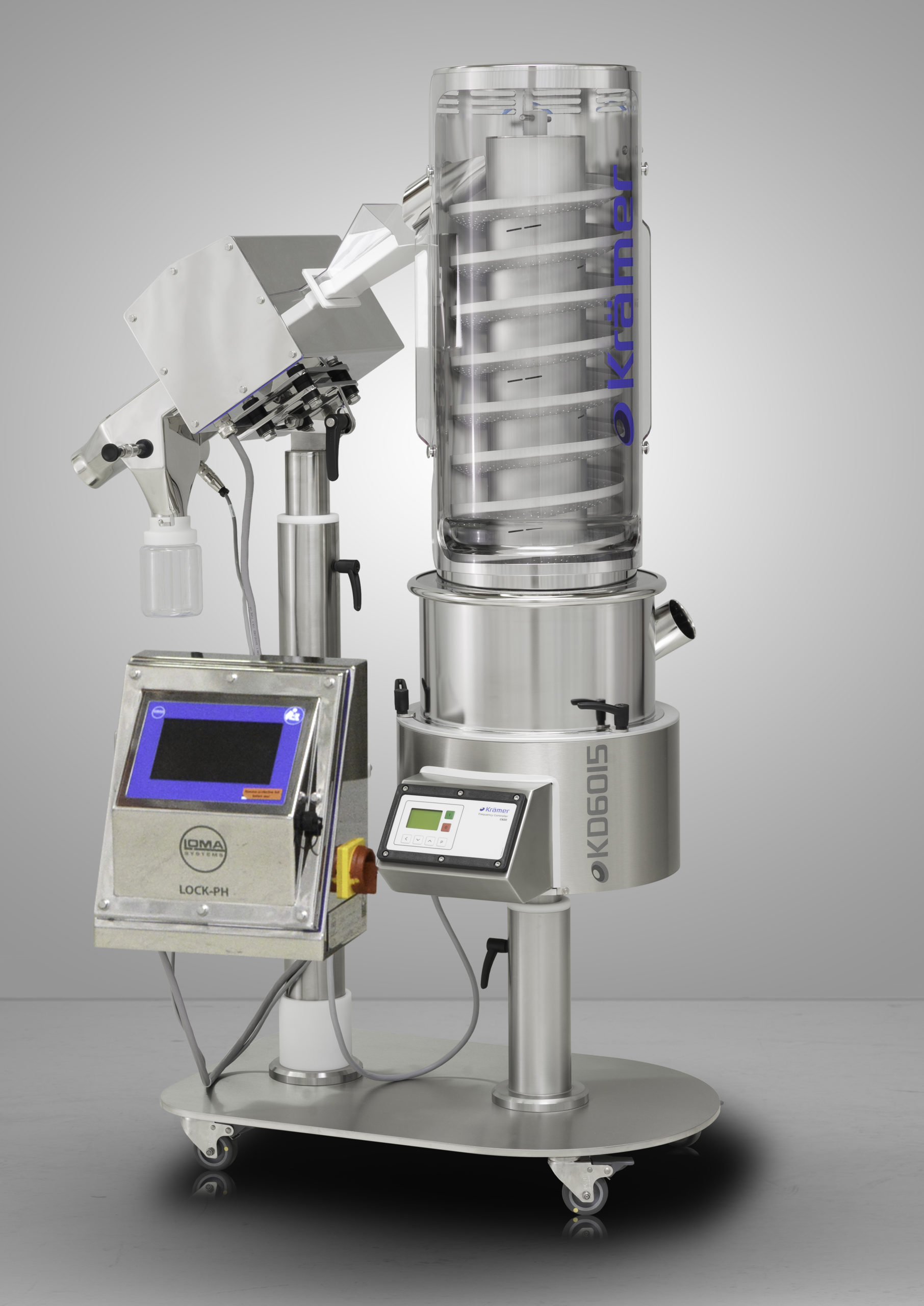

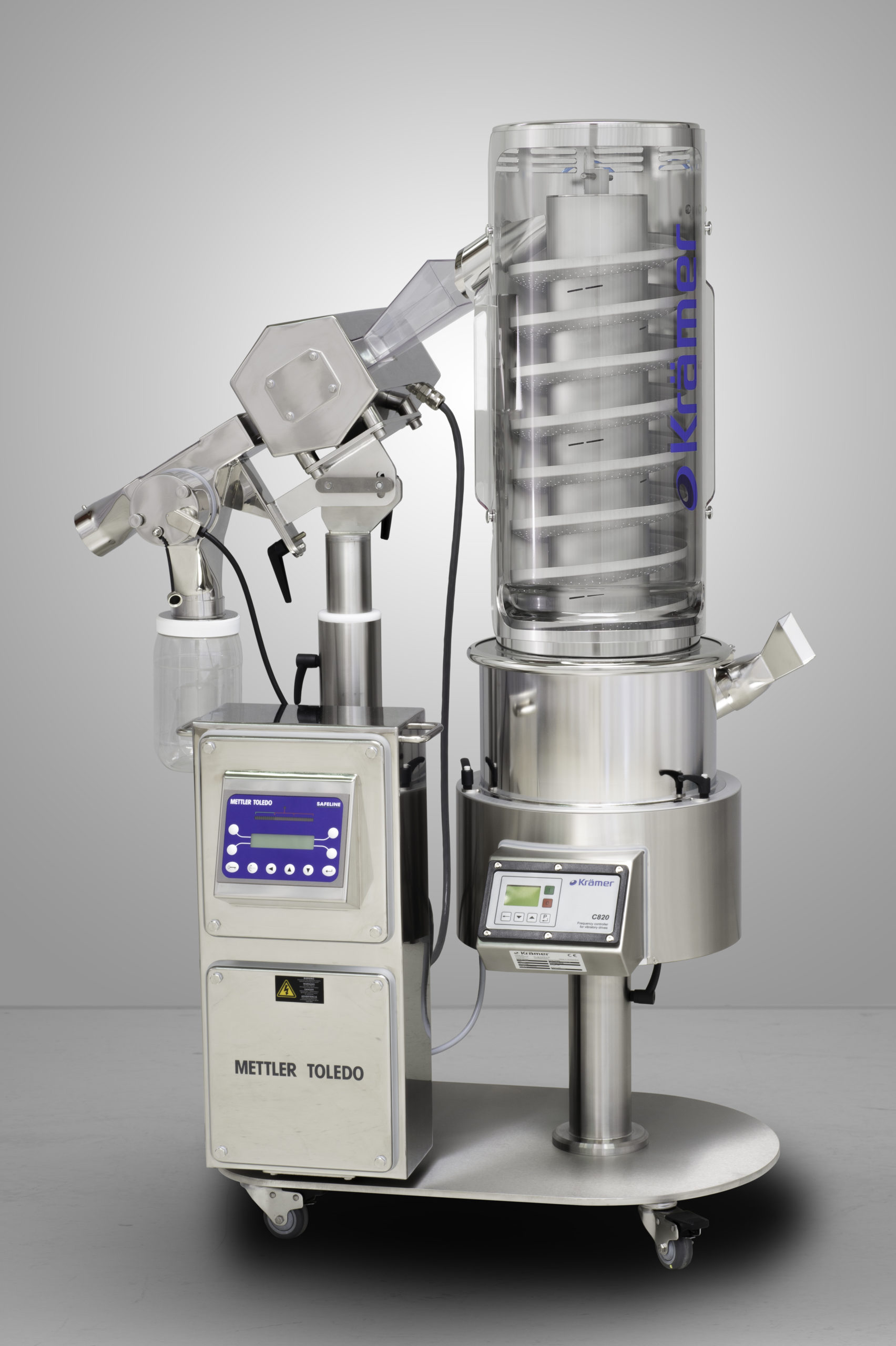

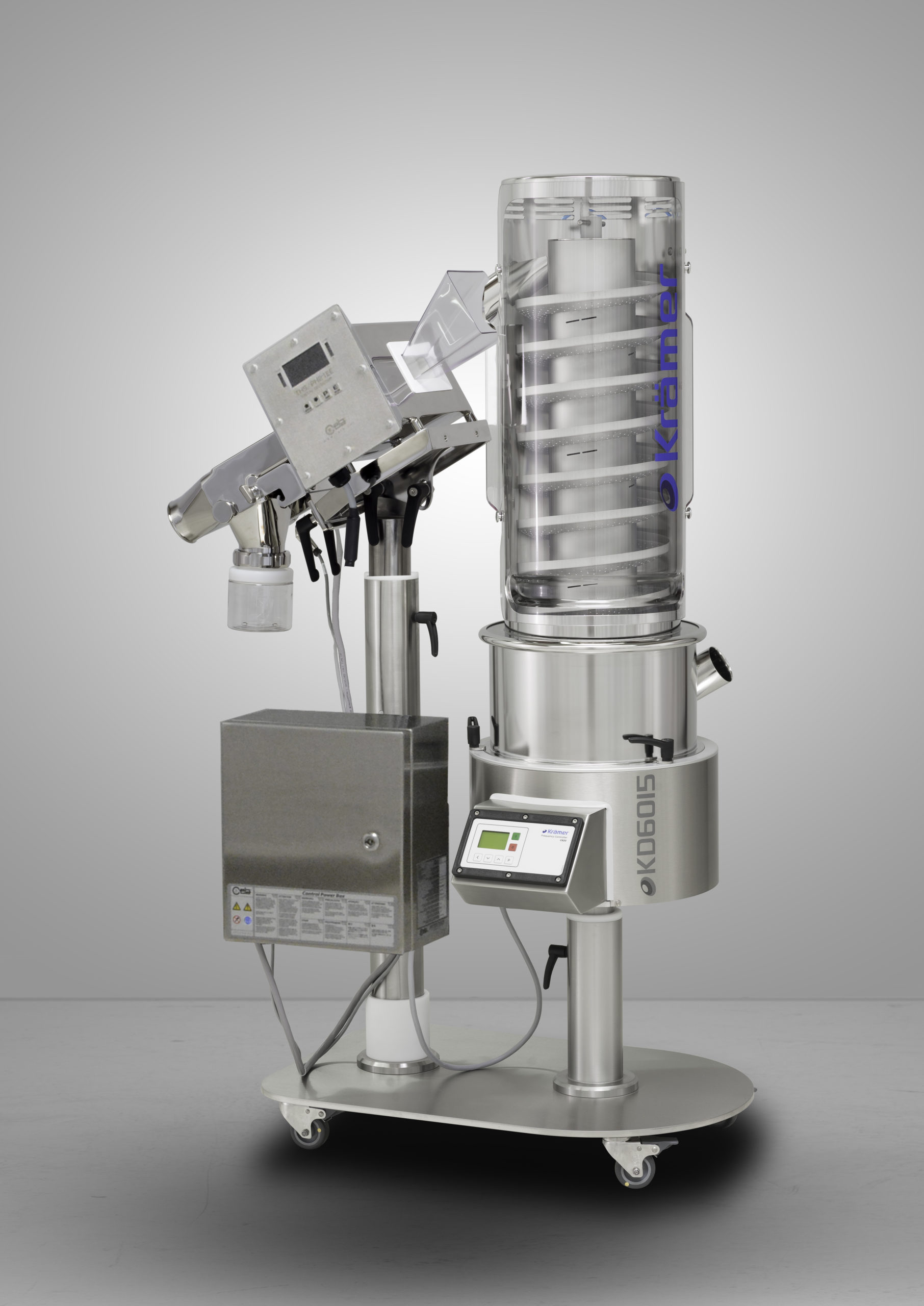

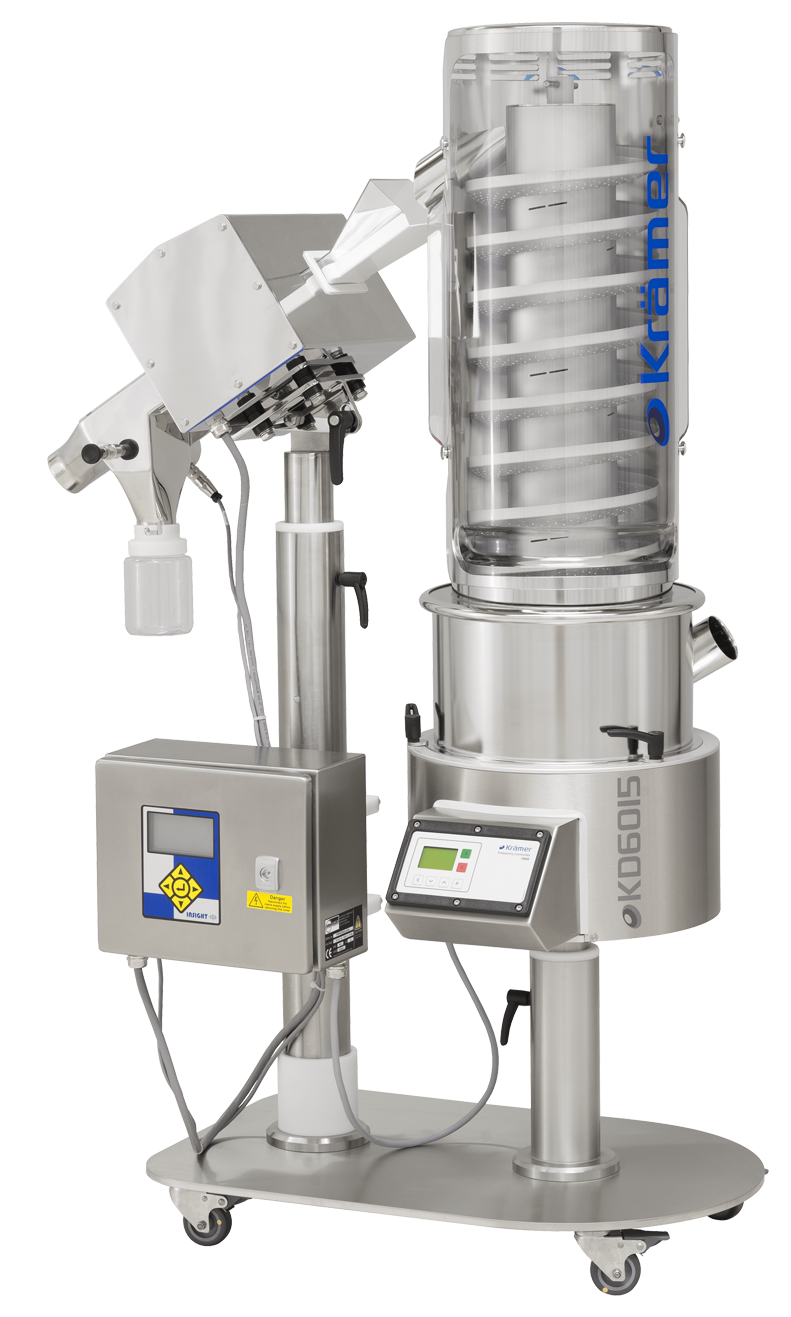

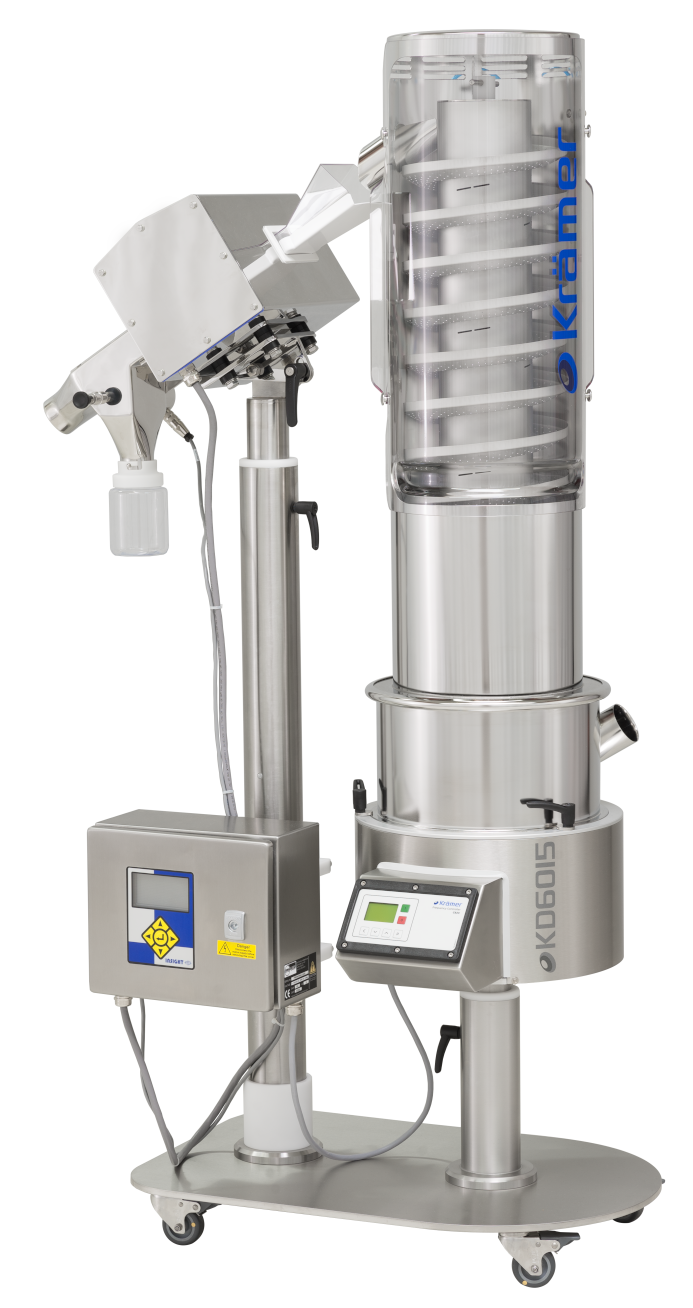

KD6015

Tablet deduster with our unique acceleration control combined with a metal detector by Ceia, Lock or Safeline. Reasonable alternative to the high-end dedusters featuring reduced user functionalities.

  • Upward conveying heights 250 to 750 mm
  • Improved dedusting and deburring capabilities thanks to optimized combination of vibration, dust agitation, air and vacuum suction
  • Featuring an acceleration sensor that assures constant vibration, independent of the load / amount of tablets in the deduster
  • Very high conveying capacity
  • Optimum viewing of tablet movement with removable window
  • Easy height adjustment, full 360° freedom of rotation at tablet inlet
  • Vibration-free housing, patented drive unit
  • Compact design, minimum footprint
  • Easy assembly and disassembly, no tools are needed
  • Easy to clean
Conveying height
250-750mm
Available Metal Detectors
Ceia, Lock, Safeline

C820 Frequency controller

The KD60 Series utilize the C820 frequency controller. The C820 operates with an acceleration sensor in the drive to determine the optimum operating frequency for ease of operation and assures constant vibration, independent of the load or amount of tablets. The LCD screen allows the operator to turn the machine on and off, and to chose the necessary conveying speed to operate with the tablet press. The C820 remote operation feature allows for connection and operation through the tablet press controls if so equipped.

KRÄMER PATENTED VIBRATORY DRIVE SYSTEM

The KD60 Series vibratory drive features the Krämer patented counterweight system which allows for operation of the deduster with no vibration being transmitted to up stream or down stream equipment. Because of the counterweight the machine is extremely quiet, low maintenance and allows for precise vibration control which is extremely gentle on the tablets. The silicone membrane prevents dust from entering the vibratory drive unit.

TABLET INLET OPTIONS

The optional tablet inlet adapter connection to the tablet press and upstream equipment with the use of a rectangular tablet inlet 110×70 mm. If the adapter is not being used, a hose can directly be attached to the round Ø 60 mm inlet. The inlet can be rotated 360° independent of the outlet. The deduster is easily adjustable to various tablet press discharge configurations.

Utility Connection Ports

All Krämer dedusters feature a 2 inch Tri-Clamp vacuum dust collection port for ease of assembly of a dust collection hose. Various optional hose adaptors are available upon request. In addition, the power supply cable uses a quick connect plug. The quick connect plug allows for use of preassembled cables with power supply as well as signal wire options for communication to upstream equipment such as tablet presses.

Optimal Process Viewing

The KD60 Series features a PETG lift off window for optimal process viewing and ease of access to the helix for easy removal for cleaning. In addition, dust agitation compressed air nozzles are supplied for the cleanest tablets possible.

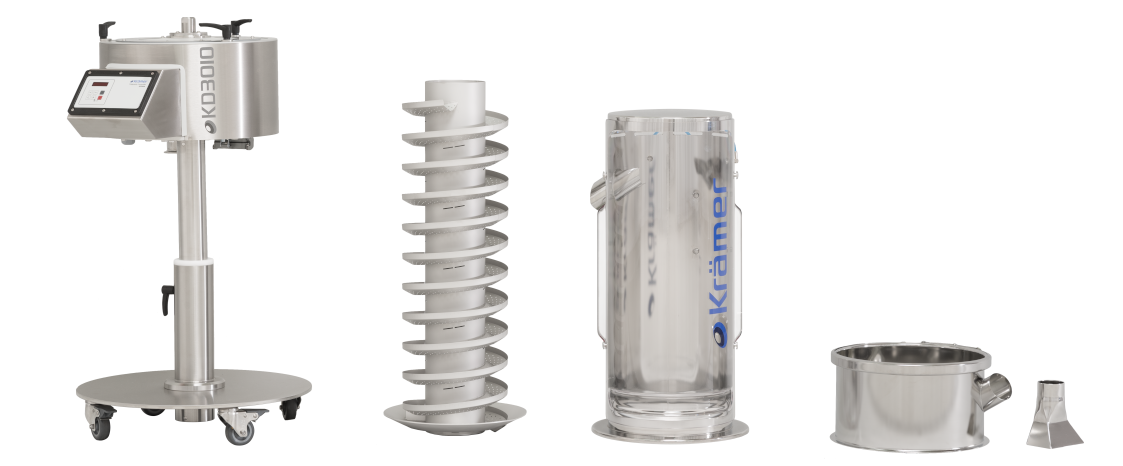

Ease of assembly and Disassembly

No tools are needed to assemble or disassemble the machine for cleaning. All product contact surfaces are 316L stainless steel. All Krämer machines minimize the number of parts to be cleaned, and keep the weight of each part minimal for ease of handling.

Specifications

Power Supply

110-240 V, 50/60 Hz

Peak current

3 A

Noise emission (1 m)

< 68 dB(A)

Elevation height

250-500-750 mm

Outlet height

670-1390 mm

Inlet height adjustable

Inlet height

715-965 mm

Total height

1180-1920 mm

Conveying technology

Upward conveying spiral

Drive unit technology

Pat. counter weight

Footprint

915x550 mm

Product contacting parts

AISI 316L, silicone, PET-G, PUR

Weight

125-145 kg

Compressed air

Ø6/4 mm, 50-100 l/min (p=1.5-2 bar)

Air extraction

2" tri-clamp, 100-250m3/h (p=10-20 mbar)

Product inlet

Ø 60.3 mm

Product outlet

Ø 60 mm

Protection rating drive unit

IP54

Protection rating housing/controller

IP50

Controller

Backlit LCD Screen with touchpad

Metaldetector models

Ceia THS/PH21 EE , Lock PH IQ4 , Safeline Tablex 2S

Metaldetector sensitivities

Ceia SS316L=0.50 / FE=0.30 / N-FE=0.35 , Lock SS316L=0.50 / FE=0.30 / N-FE=0.35 , Safeline SS316L=0.50 / FE=0.30 / N-FE=0.40

Processing of tablets (var. forms ) Ø3-35 mm

Processing of mini/micro-tablets Ø1.5-3 mm

Processing of effervescent tablets Ø25-35 mm

Processing of capsules Nr. 4-00

Conveying speed tablet Ø5 mm

3'500'000 tabs/h

Conveying speed tablet Ø13 mm

410'000 tabs/h

Conveying speed tablet Ø20 mm

130'000 tabs/h

Conveying speed tablet Ø25 mm

68'000 tabs/h

Conveying speed tablet Oblong 16.3 x 7.6 x 5.7 mm

425'000 tabs/h

Explosion protection ATEX 94/9/EG

N/A

OEL Level acc. SMEPAC

N/A

cGMP compliance

CE compliance

Option sample collection

Option helix coating

Option inlet adapter

Option outlet adapter

Option air extraction adapter

Option mini/micro-tablets

Option metal detector test tablet insert device KT2010

Option WIP manual/auto

Option 4 way drain valve system (drain/air exctraction/return)

Option hepa filter

Option empty capsule sorter KCS10

Option jam sensors

Option 2-way diverter manual KV2010 DT/WIP

Option 2-way diverter auto KV2020 DT/WIP

Option 2-12-way diverter auto V40000-V5000 DT/WIP

Option filling level sensors

Option air extraction monitoring

Option validation documentation

Option material certificates

Show more Close

Check the factsheet for further information
